Automatic Overflow Filler.

Item Description

A Fully Automatic Pressure Overflow Filler.

Galick's OFA Series Overflow Filler Includes a table top or modular belt conveyor customized to any length required, 6ea stainless steel overflow nozzles (available in various sizes) and expandable up to 16 nozzles with the XL Package, 1.5" centrifugal or 1" AODD pump, bottle indexing, touchscreen HMI, bracketry to suit the application, and 20 gallon stainless steel product supply tank.

*CANADIAN MADE*

​​

*XL Package available*

*Intrinsically Safe Package available*

*Guarding Package available*

Common Uses

Can handle a wide range of bottle shapes and sizes and is easily adjustable in height and nozzle width. Best suited to handle thin to medium viscosity products.

Overflow Filler

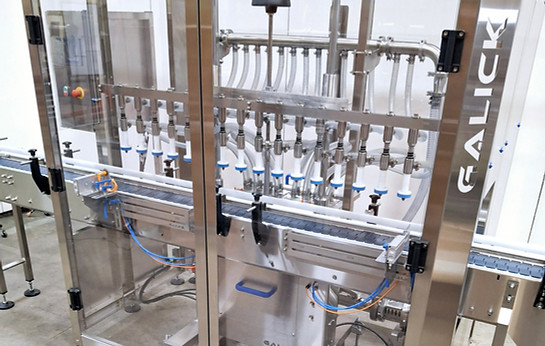

Galick Overflow Filler Pic 2025_edited.j
Screen Shot 2025-06-06 at 1.41.07 PM.png
Screen Shot 2025-06-06 at 1.44.32 PM.png
Screen Shot 2025-06-06 at 1.43.40 PM.png

Specifications.

Power Requirements

Air Requirements

120V 1 Phase

5 CFM @ 80 PSI

Speeds

Depends on bottle size and number of nozzles, approx. 24-30bpm on a 6 head running 500ml. Some customers have reached speeds of up to 70bpm on our 16 head filler

Additional Information

Stainless Steel & Aluminum Construction.

Conveyor, Nozzles, Hoses, etc. all customizable based on the application.

CANADIAN MADE, CSA Approved
